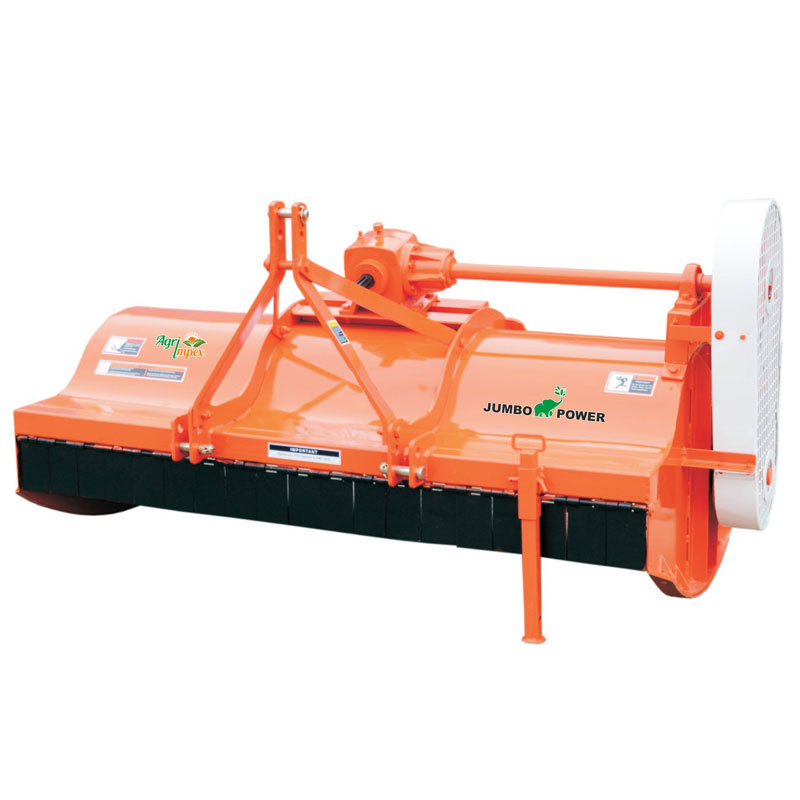

Straw Chopper

Jumbo Power has developed this perfect machine for chopping all types of
crop residue in straw such as wheat, paddy, maize, sorghum, sunflower etc.
Thus offering high versatility and making it ideal solution for customers
working under contract.
The machine in a single operation chop the left stubbles and spread it on the
ground. The chopped and spreaded stubbles are then easily buried in the soil
by the use of single operation of rotavator or disc harrow and decayed after
irrigation. Subsequently, wheat sowing is done as usual by the use of strip till
drill, no-till drill or traditional drill. Machine consists of a rotary shaft mounted
with blades named as flail to harvest the straw and chopping unit consisting of
knives. Size of chopped stubbles at flail speed of about 900 rpm and chopper
speed of about 1500 rpm was found to vary between 7-10 cm. Incorporation
of paddy residue in soil prevents loss of soil nutrients and improve soil health.

FEATURES –

Computerized balance rotor with blades.
Heavy duty single speed gearbox with belt transmission.
Double sided tempered blades for extra life.
Belt Tightener is also provided.
